Hei-VAP Expert Control

Category Rotary Evaporator
Manufacturer Heidolph
Country of manufacture Germany
Average customer rating based on 2 reviews
Overview

Adds numerous smart features to the Hei-VAP Expert, as well as an overview of all parameters and the current process

  • 5" touch display for controlling the entire system including the vacuum and the cooling temperature
  • For precise monitoring, the pictogram on the display also symbolizes active functions
  • Separate knobs for quick access: the right one for direct vacuum control, the left one for the rotation
  • Setting of values either via the touch display or the separate quick access knobs
  • Direct access to two favorites on the start screen
  • Expandable solvent library. You can also transfer your own favorites to other devices using a USB stick
  • Define and save own evaporation processes (ramps)
  • Automatically evaporate with the Dynamic AUTOaccurate Program (DAA). Convenient and customizable: from foam avoidance to highly efficient evaporation
  • With USB and Micro SD interface for easy installation of software updates and transfer of individual favorites from one device to another

    Hei-VAP Expert Control and Ultimate Control allow to centrally control all process parameters: vacuum, cooling temperature, rotation and heating bath temperature.

    • Evaporate with a tap
    • Customizable solvent library
    • Automatically find boiling points with Dynamic AUTOaccurate
    • Simply save processes as favorites

        Glassware Sets: available standard or with transparent plastic coating (B) for added safety

        • Glassware G1Diagonal condenser for all standard distillations; the option with the most affordable price.
        • Glassware G3Vertical condenser for all standard distillations; the option with the smallest space requirement.
        • Glassware G5 - Dry Ice condenser for low-boiling solvents
        • Glassware G3 XL - Vertical condenser for all distillations; condensing surface of 2200 cm² for maximum evaporation rates
        • Glassware G6 - Vertical condenser for reflux distillations

        All glassware sets also include a 1 liter evaporating flask and 1 liter condensing flask.

        Automatic evaporation with Dynamic AUTOaccurate (DAA):

        • The DAA allows you to start a fully automated distillation process already during the heat-up phase of the heating bath.
        • The system vacuum is dynamically adjusted to the changing heating bath temperatures until the heating bath has reached its defined temperature.
        • The boiling points of one or more fractions are identified through the steam temperature gradation of the mixture during continuous automatic pressure control
        • You can freely set whether one or more fractions are to be distilled. The vacuum control is fully automated for each fraction
        • You can control the evaporation speed by adjusting the ratio of steam temperature to cooling temperature
        • Samples are distilled precisely
        • Automation with sensors ensures noticeably higher precision
        • To protect your sample, motor lift models automatically remove the evaporating flask from the heating bath at the end of the process
          Key Attributes
          Condenser type Vertical, Diagonal, or Dry Ice
          Arm lifting Manual and motor
          Temp Range (°C) 20-210
          Max. Flask Size 5L
          Brand Heidolph
          Rotation speed 10-280 rpm
          Stroke: 155 mm
          Temp Accuracy (°C) ±1
          Vacuum controller included Yes
          Programmable Yes
          Warranty (years) 3
          Weight (lb) 17
          Width (in) 29.1
          Depth (in) 19.3
          Height (in) 34.9
          Manufacturer Specifications
          Rotation speed indicator 5" LCD color graphic Display
          Permissible ambient conditions 5 – 31 °C at 80 % rel. humidity 32 – 40 °C decreasing lineary up to max 50% rel. humidity
          Protection class DIN EN 60529 IP 20
          Lift Hand or motor lift
          Height adjustment speed Hand Lift Models:manual
          Motor Lift Models: 30mm/s
          Height adjustment 155 mm
          Drive brushless DC motor with electronic speed control
          Heating capacity 1,300 W
          Temp. range heating bath 20 – 210 °C
          Temperature accuracy bath  ±1K
          Overheat protection bath cut-off at 5 °C over set temperature via separate PT 1000
          Bath temperature setting 5" LCD color graphic Display
          Heating bath temperature control electronic / digital
          Secondary overtemp. cut off 250 °C
          Material heating bath  stainless steel AISI 316L
          Diameter heating bath 255 mm
          Volume heating bath  4.5 l
          Display vapor temperature Yes
          Required accessories for display vapor temperature Vapor Temperature Sensor
          Integrated vacuum controller Yes
          Timer Yes
          Programmable ramps Yes
          Supply Power 1,400 W
          Weight without glassware assembly 15 kg
          Dimensions with glassware set G3 (w/d/h) HL: 739 x 532x 887 mm
          ML: 739 x 477x 887 mm
          Dimensions with glassware set G3 XL (w/d/h) HL: 739 x 532 x 920 mm
          ML: 739 x 477x 920 mm
          Condensing surface 1,400 cm²
          Condensing surface XL condenser 2,200 cm²
          Max. size evaporating flask 5 l
          Rotation speed range 10 - 280 rpm
          Integrated Hei-CHILL controller Yes
          Vacuum program DAA mode requires AUTOaccurate-Sensor Yes
          Solvent library Yes

          FAQ

          Does the Hei-VAP Precision have UL or CSA certification?

          Yes, all Heidolph rotary evaporators are both UL listed and CSA approved.



          If I order a coated glassware set, what components come coated and what is the nature of the coating?

          The coating is a thin, transparent, plastic coating which helps make the glassware resistant to cracks and damage. Coated glassware sets include this coating on the condenser and the collection flask. Evaporation flasks are never coated due to the high bath temperatures they must withstand.

          SHOW MORE SHOW LESS
          SALE

          select from options below to see SKU

          Green Leaf
          All shipments originating from Laboratory Supply Network are carbon neutral!

          Do you need assistance?

          We have experts standing by to assist you with your purchase. Call now at +1 603-652-1395 or contact us by clicking the button below.

          Customer reviews

          based on 2 reviews

          Hei-VAP Expert Control Accessories


          • No sale
            For Hei-VAP Precision in combination with glassware set G3
              $ 339 USD
          • No sale
            Evaporating flask volumes from 50ml to 5L for Hei-VAP rotary evaporators
              from   $ 95 USD
          • No sale
            Strong and transparent guard shield for your protection while changing flasks
              $ 186 USD
          • No sale
            Powder flask volumes from 500ml to 2L for Hei-VAP rotary evaporators
              from   $ 267 USD
          • No sale
            Coated or uncoated recieving flask volumes from 100ml to 3L for Hei-VAP rotary evaporators
              from   $ 106 USD
          • No sale
            With distillation sleeves of flasks from 20mL to 100mL for Hei-VAP rotary evaporators
              from   $ 1,387 USD
          • No sale
            Required to control vacuum for Hei-VAP Precision models with valve-regulated pumps
              $ 835 USD
          • No sale
            For Hei-VAP Advantage and Hei-VAP Precision
              $ 382 USD
          • No sale
            Compact, high performance and easy-to-use pump
              $ 1,105 USD
          • No sale
            Temperature/Cooling capacity for all standard applications
              $ 5,483 USD
          • No sale
            Adjust speed individually and come to a complete stop when required level reached
              from   $ 6,544 USD
          • No sale
            With or without sleeve and spare part set
              $ 174 USD
          • No sale
            Includes 6.25 meter vacuum and meter water tubing
            based on 1 review
              $ 308 USD
          • No sale

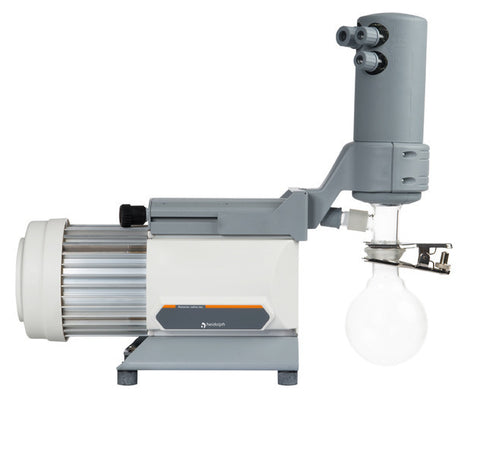

            Two-stage diaphragm vacuum pump for solvents with low or medium boiling points
