Hei-VAP Expert

Category Rotary Evaporator
Manufacturer Heidolph
Country of manufacture Germany
Overview

Precise setting of rotation speed and heating bath temperature on the digital touch display or for quick access during an active process directly via the knobs on the operating panel.

Features:

  • Central operating panel with 5“ touch display
  • Clear display of all values (Basic and Advanced modes)
  • With timer, limitation of max. temperature, multilingual menu and text display for error messages
  • Separate knobs for rotation and heating with locking function to prevent accidental readjusting
  • LED ring lights and pictogram to display the activity even from a distance
  • Integrated solvent library to facilitate adjustment of the required vacuum on an external vacuum controller
  • USB and Micro SD interfaces
  • Optional display of vapor temperature
  • Subsequent upgrade to Hei-VAP Expert Control possible, including vacuum and chiller control

      Glassware Sets: available standard or with transparent plastic coating (B) for added safety

      • Glassware G1Diagonal condenser for all standard distillations; the option with the most affordable price.
      • Glassware G3Vertical condenser for all standard distillations; the option with the smallest space requirement.
      • Glassware G5 - Dry Ice condenser for low-boiling solvents
      • Glassware G3 XL - Vertical condenser for all distillations; condensing surface of 2200 cm² for maximum evaporation rates
      • Glassware G6 - Vertical condenser for reflux distillations

      All glassware sets also include a 1 liter evaporating flask and 1 liter condensing flask.

      Key Attributes
      Condenser type Vertical Diagonal, or Dry Ice
      Arm lifting Manual and motor
      Temp Range (°C) 20-210
      Max. Flask Size 5L
      Brand Heidolph
      Rotation speed 10-280 rpm
      Stroke: 155 mm
      Temp Accuracy (°K) ±1
      Vacuum controller included No
      Programmable Yes
      Warranty (years) 3
      Weight (lb) 16
      Width (in) 29.1
      Depth (in) 19.3
      Height (in) 34.9
      Manufacturer Specifications
      Rotation speed indicator 5" LCD color graphic Display
      Permissible ambient conditions 5 – 31 °C at 80 % rel. humidity 32 – 40 °C decreasing lineary up to max 50% rel. humidity
      Protection class DIN EN 60529 IP 20
      Lift Hand or motor lift
      Height adjustment speed Hand Lift Models:manual
      Motor Lift Models: 30mm/s
      Height adjustment 155 mm
      Drive brushless DC motor with electronic speed control
      Heating capacity 1,300 W
      Temp. range heating bath 20 – 210 °C
      Temperature accuracy bath  ±1K
      Overheat protection bath cut-off at 5 °C over set temperature via separate PT 1000
      Bath temperature setting 5" LCD color graphic Display
      Heating bath temperature control electronic / digital
      Secondary overtemp. cut off 250 °C
      Material heating bath  stainless steel AISI 316L
      Diameter heating bath 255 mm
      Volume heating bath  4.5 l
      Display vapor temperature Yes
      Required accessories for display vapor temperature Vapor Temperature Sensor
      Integrated vacuum controller -
      Timer Yes
      Programmable ramps Yes
      Supply Power 1,400 W
      Weight without glassware assembly 15 kg
      Dimensions with glassware set G3 (w/d/h) HL: 739 x 532x 887 mm
      ML: 739 x 477x 887 mm
      Dimensions with glassware set G3 XL (w/d/h) HL: 739 x 532 x 920 mm
      ML: 739 x 477x 920 mm
      Condensing surface 1,400 cm²
      Condensing surface XL condenser 2,200 cm²
      Max. size evaporating flask 5 l
      Rotation speed range 10 - 280 rpm
      Integrated Hei-CHILL controller -
      Vacuum program DAA mode requires AUTOaccurate-Sensor -
      Solvent library Yes

      FAQ

      Does the Hei-VAP Advantage have UL or CSA certification?

      Yes, all Heidolph rotary evaporators are both UL listed and CSA approved.



      If I order a coated glassware set, what components come coated and what is the nature of the coating?

      The coating is a thin, transparent, plastic coating which helps make the glassware resistant to cracks and damage. Coated glassware sets include this coating on the condenser and the collection flask. Evaporation flasks are never coated due to the high bath temperatures they must withstand.

      SHOW MORE SHOW LESS
      SALE

      select from options below to see SKU

      Green Leaf
      All shipments originating from Laboratory Supply Network are carbon neutral!

      Do you need assistance?

      We have experts standing by to assist you with your purchase. Call now at +1 603-652-1395 or contact us by clicking the button below.

      Customer reviews

      No reviews yet

      Hei-VAP Expert Accessories


      • No sale
        Evaporating flask volumes from 50ml to 5L for Hei-VAP rotary evaporators
          from   $ 95 USD
      • No sale
        Strong and transparent guard shield for your protection while changing flasks
          $ 509 USD
      • No sale
        Strong and transparent guard shield for your protection while changing flasks
          $ 186 USD
      • No sale
        Control your vacuum source with a pressure range from 0 to 1,020 mbar
          $ 968 USD
      • No sale
        Powder flask volumes from 500ml to 2L for Hei-VAP rotary evaporators
          from   $ 267 USD
      • No sale
        Coated or uncoated recieving flask volumes from 100ml to 3L for Hei-VAP rotary evaporators
          from   $ 106 USD
      • No sale
        With distillation sleeves of flasks from 20mL to 100mL for Hei-VAP rotary evaporators
          from   $ 1,387 USD
      • No sale
        Required to control vacuum for Hei-VAP Precision models with valve-regulated pumps
          $ 835 USD
      • No sale
        For Hei-VAP Advantage and Hei-VAP Precision
          $ 382 USD
      • No sale
        Compact, high performance and easy-to-use pump
          $ 1,105 USD
      • No sale
        Temperature/Cooling capacity for all standard applications
          $ 5,483 USD
      • No sale
        Adjust speed individually and come to a complete stop when required level reached
          from   $ 6,544 USD
      • No sale
        With or without sleeve and spare part set
          $ 174 USD
      • No sale
        Includes 6.25 meter vacuum and meter water tubing
        based on 1 review
          $ 308 USD
      • No sale

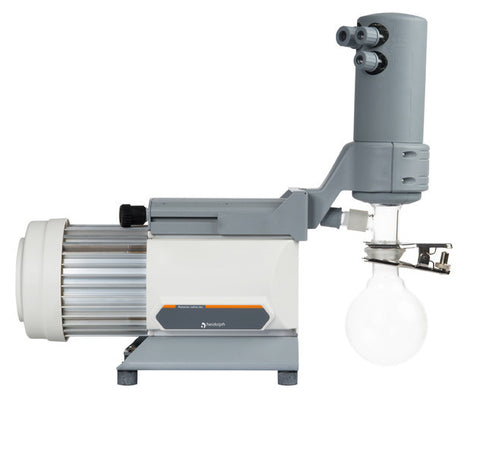

        Two-stage diaphragm vacuum pump for solvents with low or medium boiling points
