The new Ai SolventVap 5L series rotary evaporators is now UL/CSA compliant. This certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. All SolventVap come with all PTFE valves for solvent-resistant operations. Also come are vertical glassware and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.
Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 180 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.
Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.
Standard Glassware Set includes 1.32 gallon (5 liters) round-bottomed evaporating flask, 0.79 gallon (3 liters) round-bottomed receiving flask, and vertical condenser or optional cold-trap condenser. Rotary evaporators with vertical glass condenser for are great for distillation of solvents with higher boiling points.
Features: (standard vertical glassware)

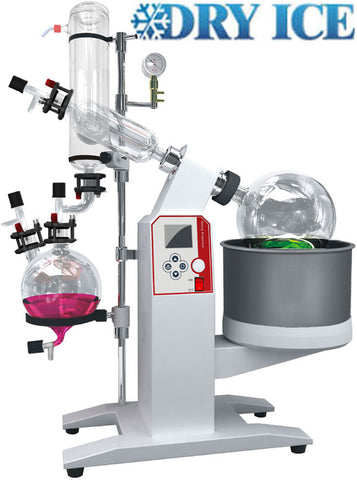

Optional Cold-Trap condenser utilizes dry ice for optimal efficiency maintained, no chiller needed.
|Condenser type||Vertical or Cold-Trap|
|Temp Range (°C)||Ambient to 99|
|Max. Flask Size||5 Liter|
|Rotation speed||10 ~ 140 rpm|
|Temp Accuracy (°C)|
|Vacuum controller included||No|
|Weight (lb)||105 evaporator, 57 glassware|
|Electrical requirements|| 110V 60Hz single phase, 2300 watts, 21A
220V 50/60Hz single phase, 2300 watts, 10.5A
Rotation motor: 300 watts
|Glass material||High borosilicate glass 3.3|
|Evaporating flask|| Capacity: 1.32 gallon (5 liters)
Maximum load: Not to exceed 60% of the flask's capacity
Sealing flange: 2" diameter
Rotation speed: 10 to 140 rpm
Evaporating speed: 0.5 gallon/hour (water), 1 gallon/hour (alcohol)
|Receiving flask||0.79 gallon (3 liter)|
|Water bath|| Temperature range: ambient to 99°C (210°F)
Temperature controller: digital
Dimensions: 11.8" diameter x 6.7" depth x 9" height
Material: stainless steel
Media: distilled water only
Max. water level: not to exceed 1" from the top rim of the bath
Number of heaters: one
Drain port: one
Exterior liner: rubber
Maximum lifting distance: 4 inches
|Vacuum|| Ultimate vacuum level: < 3 torrs
Connection: 3/8" hose barb x 1
Sealing: Viton & PTFE gaskets
|Safety||Dry-run, over-temp shut-off, built-in circuit breakers|
|Weight & dimensions|| 105 Lb (evaporator), 57 Lb (glassware)
Unit: 30 x 15.7 x 42" (WxDxH)
Shipping: 29 x 17 x 35" (evaporator), 22 x 22 x 22" (glassware) (WxDxH)
|Warranty|| One year warranty on rotary evaporator except glassware and all sealing gaskets.
Glassware may have minute blemishes that will not affect the function.
If you believe there are imperfections on your glassware, please contact us.
We check all our inventory and make sure no defective glassware is sent to our customers.
|Compliance|| UL 61010-1: 2012 Ed.3 + R: 29 Apr 2016
CSA C22.2# 61010-1-12: 2012 Ed.3+ U1; U2 (R2017)
